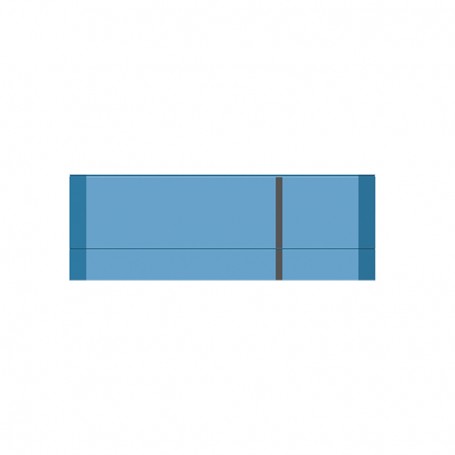

Solplanet HV Module 2.56kWh G2 lithium solar batteries
The Solplanet HV 2.56kWh G2 module is easy to install.
It is an ideal solution for new systems or to adapt into existing ones.
The modular design allows maximum flexibility, making it suitable for a wide range of storage applications and additional batteries can be installed in series.
Including €3.76 for ecotax
HV Solplanet G2 Lithium Solar Battery - 2.56kWh
The HV Battery Module 2.56kWh G2 is a high-voltage lithium battery module designed for energy storage in photovoltaic systems. With a modular and scalable design, it allows for capacity expansion to meet a variety of residential and commercial needs. Each module offers 2.56 kWh of useful capacity and can be combined with others to achieve greater autonomy. With a 90 per cent depth of discharge, flexible floor mounting and IP65 protection, it guarantees durability and reliable performance even in demanding conditions. It is an efficient and adaptable solution for optimising energy storage.
ADVANTAGES
HV
.png)
2.56 kWh
ESCALABLE UP TO 81.92 kWh
.png)
90% DOD
WARRANTY 10 YEARS
| Technical Data | |
|---|---|
| Nominal capacity | 2.56 kWh |
| Voltage | 51.2 V |
| Maximum charge/discharge current | 25/30A |
| Discharge capacity (DOD) | 90% |
| Ciclos | >6000 |
| Cycle efficiency | >95% |
| Cell type | LiFePO4 |
| Communication | CAN |
| Scalability | Max 8 in parallel up to 81.92 kWh |
| General Data | |
|---|---|
| Inverter compatibility | Solplanet T2 and T3 series hybrid inverters |
| IP Rating | IP65 |
| Weight | 30.5 kg |
| Dimensions | 130 × 540 × 390 mm (A × L × P) |
| Warranty | 10 years |
| Documentation | |
|---|---|
| Data Sheet |  |
