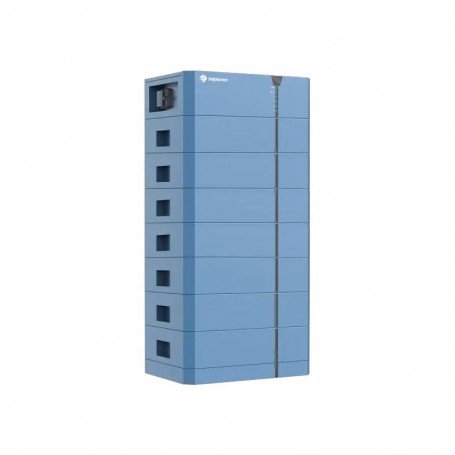

Solplanet HV Kit 17.92kWh lithium solar batteries - G2
Solplanet HV Kit 17.92kWh G2 lithium solar batteries are an easy to install kit.
It is a high performance battery storage system.
The modular design allows maximum flexibility, making it suitable for a wide range of storage applications and additional batteries can be installed in series.
Including €27.02 for ecotax
Solplanet HV Kit 17.92kWh lithium solar batteries - G2
The Solplanet HV Kit 17.92kWh - G2 is a high-voltage energy storage system made up of lithium battery modules and a dedicated controller. With a modular and scalable design, it allows capacity to be expanded according to residential and commercial needs. This kit offers a total capacity of 17.92 kWh and ensures efficient charge and discharge management, maximising the system's performance and durability. With IP65 protection, simple floor installation and high reliability, it is a robust and versatile solution for optimising energy storage and ensuring greater energy independence.
ADVANTAGES
HV
.png)
17.92 kWh
ESCALABLE UP TO 81.92 kWh
.png)
90% DOD
WARRANTY 10 YEARS
| Technical Data | |
|---|---|
| Nominal capacity | 17.92 kWh |
| Voltage | 358.4 V |
| Maximum charge/discharge current | 25/30A |
| Discharge capacity (DOD) | 90% |
| Ciclos | >6000 |
| Cycle efficiency | >95% |
| Cell type | LiFePO4 |
| Communication | CAN |
| Scalability | Max 8 in parallel up to 81.92 kWh |
| General Data | |
|---|---|
| Inverter compatibility | Solplanet T2 and T3 series hybrid inverters |
| IP Rating | IP65 |
| Weight | 228.5 kg |
| Dimensions | 1120 × 540 × 390 mm (A × L × P) |
| Warranty | 10 years |
| The kit includes | 7x HV Battery Module 2.56kWh G2 1x HV Battery controller G2 |
| Documentation | |
|---|---|
| Data Sheet |  |
