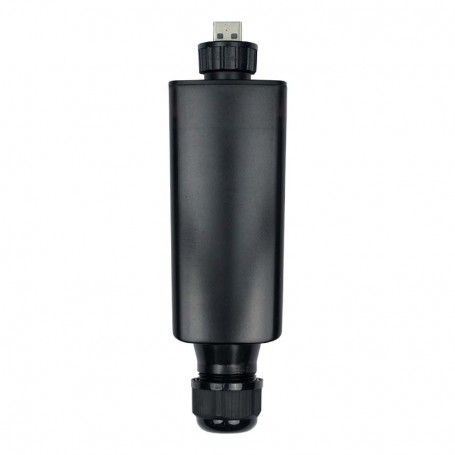

Solplanet Dongle LAN Monitoring
The Ai-Dongle LAN connects the inverters to the Solplanet application.
Inverter and meter data is collected and sent via the internet to allow easy monitoring of the photovoltaic system.
It is very accurate, simple, easy to install and very efficient.
€36.04
VAT included
Dongle LAN module for Solplanet
The Solplanet Dongle LAN is a monitoring device that uses cable communication to collect data from the inverters and send it to the Solplanet platform. It supports the monitoring of up to 10 inverters and guarantees a stable connection for monitoring solar production in real time. With simple installation via USB, it offers a reliable solution for efficient energy management.
| Technical Data | |
|---|---|
| Number of supported devices | 10 |
| Maximum operating altitude | 4000 m |
| WLAN communication | LAN x 1, 10 / 100 / 1000 Mbps |
| Communication with APP | Cable |
| Protection Class | IP66 |
| Compatibility | Solplanet Inverters |
| General Data | |
|---|---|
| Weight | 0.1 kg |
| Dimensions | 50 × 170 × 34 mm (A × L × C) |
| Warranty | 3 years |
| Documentation | |
|---|---|
| Technical sheet |  |
