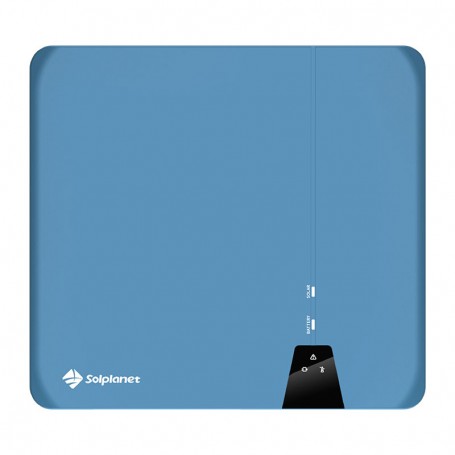

Solplanet ASW6000H-S2 Hybrid grid-tie inverter
Use the power of the sun, day and night with Solplanet's series of single-phase hybrid inverters.
The new ASW H-S2 single-phase hybrid inverter series brings the latest updates that match the distinctive design and easy installation.
Stylish, powerful and versatile.
Including €1.39 for ecotax
Solplanet ASW 6000H-S2 1p hybrid (included wifi and meter)
The Solplanet ASW 6000H-S2 1p is a reliable and efficient single-phase hybrid inverter with an output of 6kW and an efficiency of 97 per cent. This inverter has 2 independent MPPTs, an MPPT current of up to 16A, an MPPT voltage range of 40-530V, and a minimum starting voltage of 50V. In addition, the intelligent and precise EMS control continuously monitors and adjusts the photovoltaic panel's power, the battery's power, the charging power and the online power. Includes WiFi and meter.
ADVANTAGES
SINGLE-PHASE
2 MPPT
WIFI AND METER INCLUDED
HYBRID
IP66
| Technical Data | |
|---|---|
| AC output power |
6 kW |
| Number of phases | 1 - Monofásico |
| Nominal input voltage | 380 V |
| Minimum starting voltage | 40V |
| MPPT voltage range | 40-530V |
| Maximum input voltage | 550V |
| MPPT number | 2 |
| Maximum input current | 16A |
| Maximum input power | 9 kW |
| General Data | |
|---|---|
| Maximum efficiency | 97% |
| Weight | 25.1kg |
| Dimensions | 483 × 455 × 193.5mm (A × L × P) |
| Product guarantee | 10-year basic warranty (extendable to 20 years) |
| WiFi | Included |
| Consumption meter | Included |
| Compatible batteries | Solplanet Aiswei Ai-LB series |
| Documentation | |
|---|---|
| Data Sheet |  |
| Power Output | 6 000 W |
|---|---|
| Power Input | 9 000 Wp |
| Number of phases | 1 - Single-phase |
| MPPT inputs | 2 |
| Vox max | 550 V |
| Vmp Range | 40~530 V |
| Start-up Voc | 50 V |
| Compatible Batteries | Pylontech 48v |
| Dimensions | 483 × 455 × 193.5mm (W × H × D) |
| Weight | 25.1 kg |
| Warranty | 10-year product warranty (extendable up yo 20 years) |
|
Monitoring |
Wi-Fi included |
|
Consumption meter |
Meter Included |
