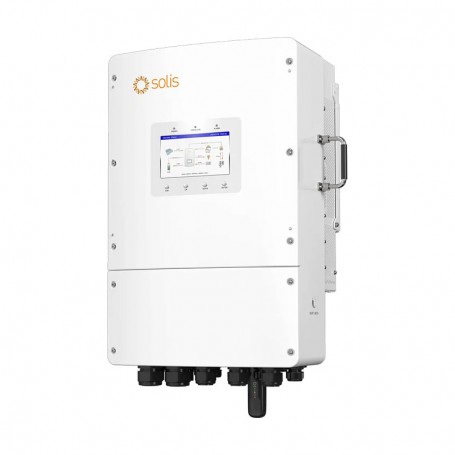

Solis S6 EH 3p 12K02-H hybrid - Low Voltage (includes wifi and meter)
The Solis S6 EH 3p 12K02-H hybrid is a 12Kw, three-phase inverter with 2 independent MPPTs and an efficiency of 97.0%.
Including €1.87 for ecotax
Solis S6 EH 3p 12K02-H hybrid - Low Voltage (includes wifi and meter)
The Solis S6 EH 3p 12K02-H is a reliable and efficient three-phase hybrid inverter with an output of 12kW and an efficiency of 97.0%. This inverter has 2 independent MPPTs, an MPPT current of up to 40A, an MPPT voltage range of 200-850V, and a minimum starting voltage of 160V. The inverter is compatible with generators, making it possible to extend the power reserve in the event of grid failures. It offers intelligent control for critical and non-critical loads and is suitable for high-power modules with an input current of up to 40A. It also has reverse current protection features, peak consumption reduction and support for unbalanced loads, both on the grid and in standby mode. Includes WiFi and meter.
ADVANTAGES
THREE-PHASE
2 MPPT
WIFI AND METER INCLUDED
HYBRID
IP66
| Technical Data | |
|---|---|
| Rated AC output power |
12 kW |
| Number of phases | 3 - Three-phase |
| Nominal input voltage | 550 V |
| Minimum starting voltage | 160V |
| MPPT voltage range | 200-850V |
| Maximum input voltage | 1000V |
| MPPT number | 2 |
| Number of inputs per MPPT | 3 |
| Maximum input power | 19.2 kW |
| General Data | |
|---|---|
| Maximum efficiency | 97.0% |
| Weight | 42kg |
| Dimensions | 660 × 430 × 305mm (A × L × P) |
| Product warranty | 5-year basic warranty |
| WiFi | Included |
| Consumption meter | Included |
| Compatible batteries | Sunwoda SunESS / Weko 5K3 |
| Documentation | |
|---|---|
| Technical sheet |  |
