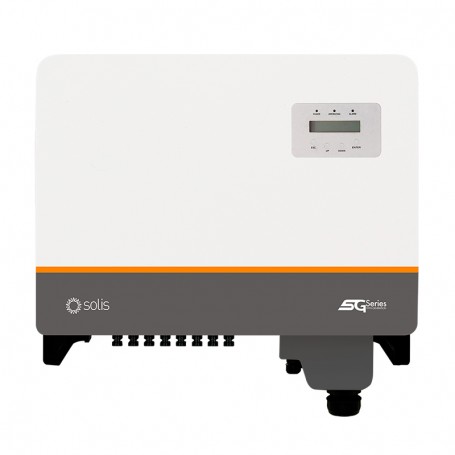

Solis S5 36K 3Ph Inverter (wifi)
The Solis S5-GC 36K 3ph is a three-phase grid-tie inverter with an output of 36 kW, 4 MPPT and WiFi included.
€2,805.08
Including €1.58 for ecotax
VAT included
SOLIS
Solis S5-GR3P 36000W 3 ph (wifi)
The Solis S5-GC 36K 3ph is a powerful and reliable three-phase grid-tie inverter with an output of 36kW and a high efficiency of 98.3%. This inverter has 8 strings per MPPT, an MPPT current of up to 32A, an MPPT voltage range of 200-1000V, and a minimum starting voltage of 180V. This inverter also has a string monitoring system and intelligent I-V curve scanning to increase performance.
THE ADVANTAGES :
4 MPPTS
WiFi
Display LCD
IP66 and AFCI Classification
| AC output power | 36000 W |
|---|---|
| DC input power | 54000 W |
| Number of phases | 3 - Three-phase |
| Number of MPPT inputs | 3 |
| Nominal voltage | 600 V |
| MPPT voltage range | 160-1000 V |
| Starting voltage | 180V |
| Dimensions | 647 × 629 × 252mm (A × L × P) |
| Weight | 42.1kg |
| Warranty | 5-year basic warranty |
