New

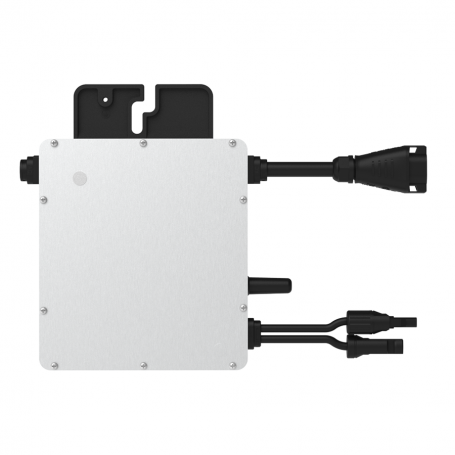

Hoymiles HMS-500-1T solar microinverter
The Hoymiles HMS-500 microinverter is very efficient and easy to install. It is one of the most flexible solar solutions on the market and can be connected to a photovoltaic module between 400 and 670 W.
€158.52
Including €0.11 for ecotax
VAT included
Optional accessories
Wifi Monitoring
Microinversor Solar Hoymiles HMS-500-1T
With output power of up to 500 VA, the new HMS-500-1T Microinverter series from Hoymiles is ranked among the best microinverters. With a MPPT efficiency of 99.80%, it is suitable for solar panels with power between 400 and 670 W. The Sub-1G's new wireless solution allows for more stable communication under the most varied environmental conditions, with an IP67 enclosure rating.
VANTAGENS
PLUG & PLAY
OPTIONAL MONITORING
IP67 PROTECTION RATING
WARRANTY
| Technical Data | |
|---|---|
| AC output power | 500 VA |
| Number of phases | 1 |
| Minimum starting voltage | 22 V |
| MPPT voltage range | 16-60 V |
| Maximum input voltage 65V | 65V |
| Number of MPPTs | 1 |
| Maximum input current 16 A | 16 A |
| Module power | 400 a 670 W |
| Nominal MPPT efficiency | 99,8% |
| General Data | |
|---|---|
| Weight | 1.75kg |
| Dimensions | 164 × 182 × 30mm (A × L × P) |
| Product warranty | 12 years |
| Communication | Sub-1G |
| Monitoring | Optionals Hoymiles DTU-WLite-S Hoymiles DTU-pro-S |
| Documentation | |
|---|---|
| Datasheet |  |
