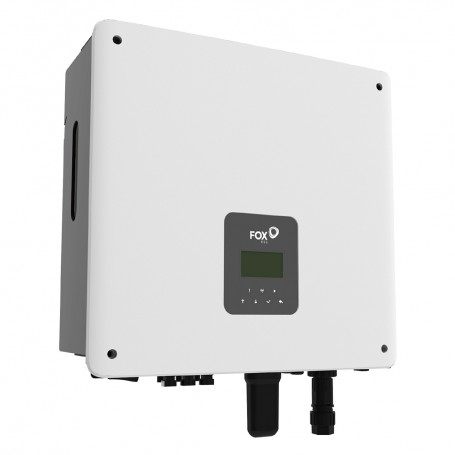

Fox ESS H1-4.6-E-G2 single-phase hybrid grid-tie inverter

Fox ESS H1-4.6-E-G2 single-phase hybrid grid-tie inverter

The FOX ESS 4.6 kW single-phase hybrid grid-tie inverter, with 2 independent MPPTs, a maximum current of 20 A per string, and 96.23% efficiency. Includes WiFi and IT consumption of 10 meters.

€1,150.26

Including €1.38 for ecotax

VAT included

Fox ESS H1-4.6 - E-G2


Fox Ess hybrid inverters are manufactured to a high quality standard to provide maximum performance, efficiency, reliability and longevity. The H1 - 4.6- E-G2 hybrid grid-tie inverter is designed for residential applications. With 2 MPPT, the H1-4.6 G2 maximizes energy harvesting from multiple photovoltaic modules, and being storage-ready, it is compatible with FOX ESS high-voltage batteries. The plug-and-play design simplifies installation, while integrated WiFi enables remote monitoring and management via the Fox ESS app. Real-time data and system alerts ensure optimum performance and user convenience.

ADVANTAGES

sem som

2 MPPT

ip66

WIFI

instalação

LCD DISPLAY

monitorização

IP65



Technical Data
AC output power 4600 W
AC Max input power 6900 VA
Number of phases 1 - One-phase
Number of MPPT inputs 2
Nominal voltage 360 V
MPPT voltage range 80-550 V
Starting voltage 75 V
General Data
Dimensions 434 × 418 × 185mm
Weight 22kg
Warranty 10 years
Documentação
Datasheet pdf
IVRH0161
22 kg
