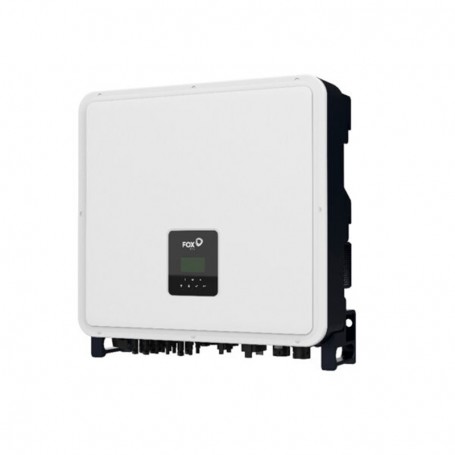

Fox ESS H3-Pro-15.0-E
Use the power of the sun day and night with FoxESS' innovative line of hybrid inverters.
The Fox ESS H3-Pro-15.0-E hybrid grid-tie inverter is three-phase, has 3 MPPTs, a maximum load rate of up to 15kW, can connect to two separate battery banks and allows up to 10 inverters to be installed in parallel.
Featuring numerous advanced features and its compatible with the full range of high-voltage batteries, the FoxESS hybrid line is a new class of inverters.
Including €2.44 for ecotax
Fox ESS H3-Pro-15.0-E
Fox hybrid inverters are manufactured to a high quality standard to provide maximum performance, efficiency, reliability and longevity.
The quality of the components used has a direct impact on the lifespan of an inverter because they are made to the highest quality by the world's leading manufacturers.
Fox inverters incorporate a unique heat dissipation design and cooling fins. It is integrated into the inverter casing to ensure optimum direct contact with heat-generating components.
ADVANTAGES
3 MPPT
WIFI
Display LCD
IP65
| Technical Data | |
|---|---|
| AC output power | 15000 W |
| DC input power | 22500 W |
| Number of phases | 3 - Three-phase |
| Number of MPPT inputs | 3 |
| Nominal voltage | 1000 V |
| MPPT voltage range | 170-850 V |
| Starting voltage | 160 V |
| General Data | |
|---|---|
| Dimensions | 600 × 560 × 225mm |
| Weight | 57.5kg |
| Warranty | 10 years |
| Documentação | |
|---|---|
| Datasheet |  |
