New

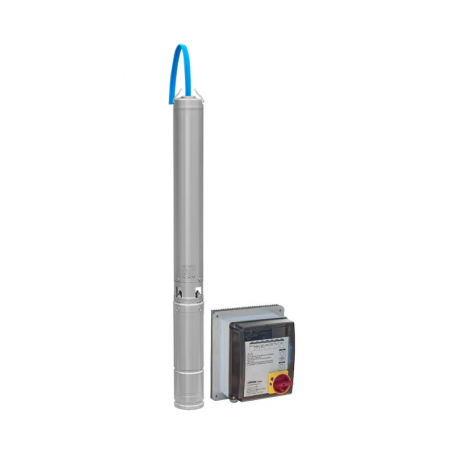

EOS BS4 4/14-4T 96/1000 submersible electric pump
EOS BS4 4/14-4T 96/1000 electric pump with EOS 96/1000 controller, for submersible solar pump solutions. The system includes controller, pump, motor and water shortage probe.
€1,535.42
VAT included
Optional accessories
Solar panels
EElectric submersible pump EOS BS4
4/14-4T96/1000
Submersible solar pumps are ideal for agriculture, autonomous irrigation, filling tanks, drinking fountains, domestic applications or hydropneumatic systems. They work directly with solar radiation, offering an economical and sustainable solution for locations without an electricity grid. With a flow rate of up to 7.4 m³/h and a nanometric height of up to 115 meters, they guarantee an efficient water supply adapted to various needs. The pumps are powered by brushless DC motors, which guarantee greater efficiency.
ADVANTAGES
DC MOTOR
.png)
VOC MAX 200V
1300W RECOMMENDED PV POWER
WATER SHORTAGE SENSOR INCLUDED
IP54 CONTROLLER
| Controller | |
|---|---|
| Nominal Power | 1000 W |
| Maximum DC voltage (Voc) | 200 V |
| Recommended power PV | 1300 W |
| Max. MPPT efficiency | 99% |
| Strings | 1 |
| Rated Current | 12.5 A |
| IP Protection | IP54 |
| Dimensions (CxLxA) | 280x250x170 mm |
| Weight | 3.7 kg |
| Warranty | 2 anos |
| Pump | |
|---|---|
| Height | 950mm |
| Weight | 4kg |
| Warranty | 2 anos |
| Documentation | |
|---|---|
| Data sheet |  |
